SAM Cheap Model CNC Router Machine SAM-1212
Model No.︰
SAM-1212
Brand Name︰
Sam
Country of Origin︰
China
Unit Price︰
US $ 2300 / pc
Minimum Order︰
1 pc
Product Description
Specification For CNC Router SAM-1212
|
Model |
SAM-1212 |
|
X、Y working area |
1200×1200mm |
|
Z working area |
150mm |
|
Max carving speed |
15m/min |
|
Resolution |
0.005mm |
|
Repeatability |
0.025mm |
|
Max feeding height |
150mm |
|
Command |
G code*.u00*.mmg*.plt |
|
Surrounding for software |
Windows 2000/XP |
|
Power (not including spindle) |
300W |
|
work mode |
Step motor |
|
Spindle power |
1.5KW (water cooled) |
|
Spindle rotating speed |
0-24000rpm/min |
|
Work voltage |
AC220V/50Hz |
Suitable Industry
Suitable for high-volume processing of non-ferrous metal sheet, Such as aluminum veneer, Small PVC board, Small acrylic board, Small wood board, Small MDF composite panels,two color board, and plastic small sheet, such as sheet processing, cutting, slotting, engraving, milling, etc.
Performance Characteristics:
1、The structure of the machine is made from high quality cast aluminum. Imported ball screw and round guide to guarantee the accuracy.
2、The synchronization of anti-interaction design coming from software and hardware, large memory capacity, more stronger resisting interaction, make the system operate reliably
3、Spindle:1.5 kw inverter-driven spindle motor cooled by water, no noise, supply power for three axis and the whole system separately, own electric protection device, support long time ,high-intensity working
4、The simplified system parameter, make the operation easy to learn and to use, avoiding the fussy study.
5、Software: Compatible with CAD/CAM software such as type3/artcam/castmate etc.
Guarantee & aftersale service
Guarantee for one year, technical support by email or calling except Sunday or other holidays.
User-friendly English manual and Video CD for machine using and maintaining.

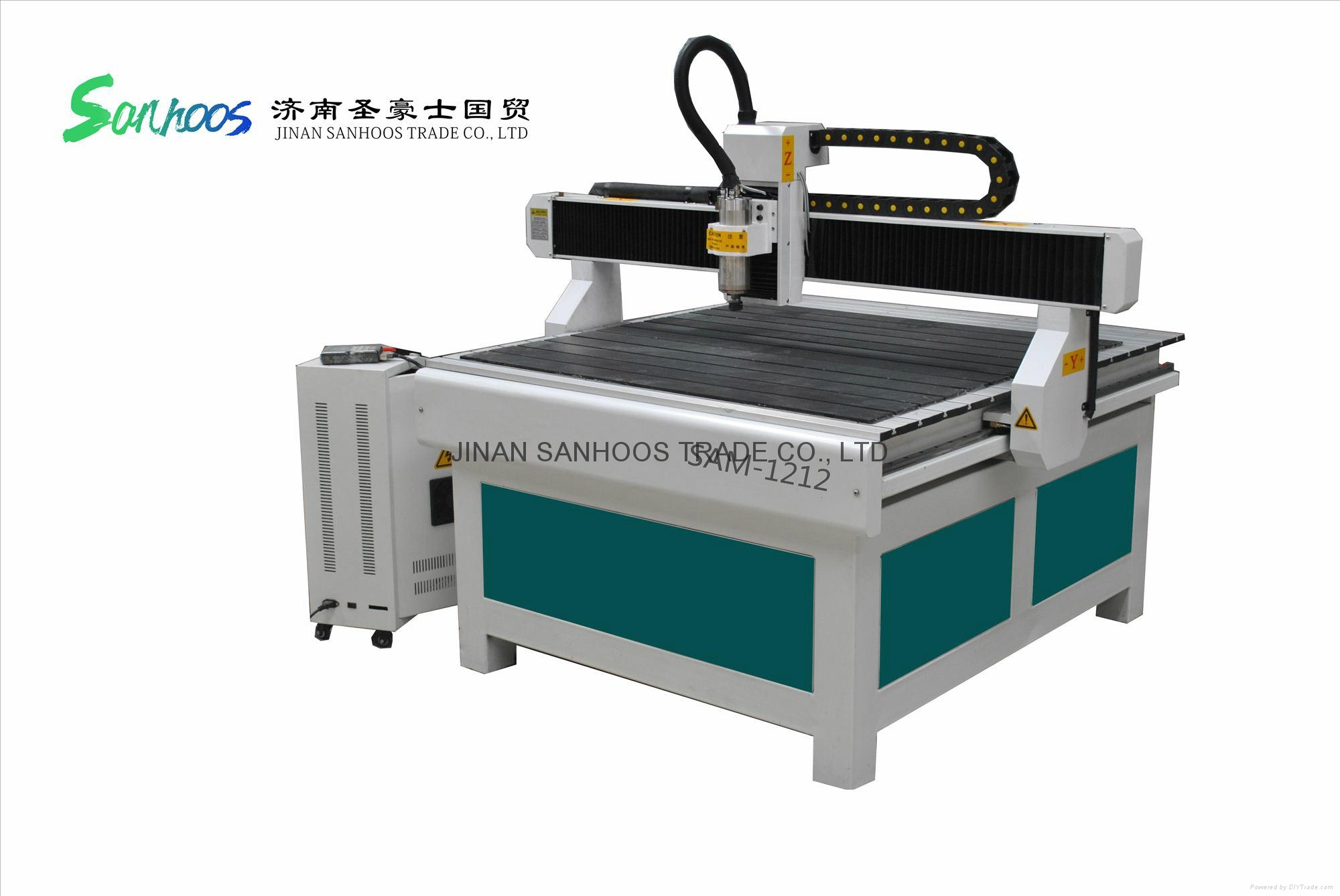

Product Image
