Sam Tools Holder For CNC Machine ATC
Country of Origin︰
China
Minimum Order︰
1 pc
Product Description
BT40 tool holder for CNC machinery:
1.Made from carburized alloy steel,work surface hardness to HRC58-62
2.Tape accuracy ≤AT3,ensure well contact with spindle cone for high speed running to protect the spindle.
3.Concentricity and runout ≤0.005mm in high rpm
4.Including collet chuck,shell end mill holder,weldom mill holder, sleeve,drill chuck arbor,combi shell end mill holder,with BT,CAT,DIN,HSK standard shank.
5.Holders can be balanced to G6.3/12000rpm or G2.5/20000rpm.
|
model no. |
D |
D1 |
model no. |
D |
D1 |
|
BT30xER16-70 |
28 |
31.75 |
BT40xER40-120 |
63 |
44.45 |
|
BT30xER20-70 |
34 |
31.75 |
BT40xER40-150 |
63 |
44.45 |
|
BT30xER25-70 |
42 |
31.75 |
BT45xER16-70 |
28 |
57.15 |
|
BT30xER32-70 |
50 |
31.75 |
BT45xER20-70 |
34 |
57.15 |
|
BT30xER40-80 |
63 |
31.75 |
BT45xER20-100 |
34 |
57.15 |
|
BT40xER16-70 |
28 |
44.45 |
BT45xER25-70 |
42 |
57.15 |
|
BT40xER20-70 |
34 |
44.45 |
BT45xER25-90 |
42 |
57.15 |
|
BT40xER20-100 |
34 |
44.45 |
BT45xER25-100 |
42 |
57.15 |
|
BT40xER20-150 |
34 |
44.45 |
BT45xER32-70 |
50 |
57.15 |
|
BT40xER25-60 |
42 |
44.45 |
BT45xER32-100 |
50 |
57.15 |
|
BT40xER25-70 |
42 |
44.45 |
BT45xER32-120 |
50 |
57.15 |
|
BT40xER25-90 |
42 |
44.45 |
BT45xER40-80 |
63 |
57.15 |
|
BT40xER25-100 |
42 |
44.45 |
BT45xER40-100 |
63 |
57.15 |
|
BT40xER25-150 |
42 |
44.45 |
BT45xER40-120 |
63 |
57.15 |
|
BT40xER32-70 |
50 |
44.45 |
BT50xER16-70 |
28 |
69.85 |
|
BT40xER32-100 |
50 |
44.45 |
BT50xER16-90 |
28 |
69.85 |
|
BT40xER32-150 |
50 |
44.45 |
BT50xER16-135 |
28 |
69.85 |
|
BT40xER40-70 |
63 |
44.45 |
BT50xER20-70 |
34 |
69.85 |
|
BT40xER40-80 |
63 |
44.45 |
BT50xER20-90 |
34 |
69.85 |
|
BT50xER20-135 |
34 |
69.85 |
BT50xER32-100 |
50 |
69.85 |
|
BT50xER20-150 |
34 |
69.85 |
BT50xER32-120 |
50 |
69.85 |
|
BT50xER20-165 |
34 |
69.85 |
BT50xER40-80 |
63 |
69.85 |
|
BT50xER25-70 |
42 |
69.85 |
BT50xER40-100 |
63 |
69.85 |
|
BT50xER25-135 |
42 |
69.85 |
BT50xER40-120 |
63 |
69.85 |
|
BT50xER25-165 |
42 |
69.85 |
BT50xER40-135 |
63 |
69.85 |
|
BT50xER32-70 |
50 |
69.85 |
BT50xER50-90 |
78 |
69.85 |
|
BT50xER32-80 |
50 |
69.85 |
BT50xER50-120 |
78 |
69.85 |
|
SIZE STANDARD |
BT30 |
BT40 |
BT45 |
BT50 |
|
d1 |
31.75 |
44.45 |
57.15 |
69.85 |
|
d2 |
12.5 |
17 |
21 |
25 |
|
d3 |
56.144 |
75.679 |
100.215 |
119.019 |
|
d4 |
46 |
63 |
85 |
100 |
|
d5 |
38 |
53 |
73 |
85 |
|
D |
8 |
10 |
12 |
15 |
|
L1 |
48.4 |
65.4 |
82.8 |
101.8 |
|
L2 |
22 |
27 |
33 |
38 |
|
L3 |
24 |
30 |
38 |
45 |
|
L4 |
7 |
9 |
11 |
13 |
|
L5 |
13.6 |
16.6 |
21.2 |
23.2 |
|
L6 |
16.3 |
22.6 |
29.1 |
35.4 |
|
a |
2 |
2 |
3 |
3 |
|
b |
16.1 |
16.1 |
19.3 |
25.7 |
|
T |
M12 |
M16 |
M20 |
M24 |

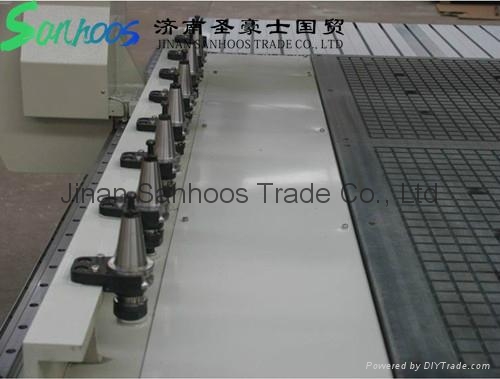

Product Image
